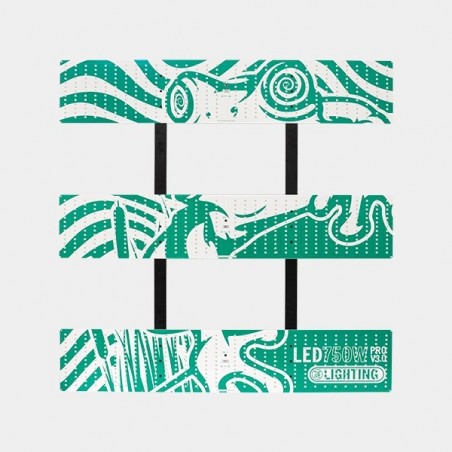

GB Lighting Dimmable LED Panel 750 W V3.0 PRO

The ideal lamp for 1.5 x 1.5" grow rooms

The GB Lighting 750w LED system features the latest full spectrum technology to ensure amazing results for your crops, both during the growing and flowering phases. In addition, LED technology allows you to reduce energy costs without losing any performance.

Thanks to this panel, your crops will be boosted due to optimal light distribution and an efficiency of up to 2.2 μmol/J, making it perfect for 1.5 x 1.5 grow rooms. Finally, its photosynthetic photon flux (PPF) and the right amount of blue and red light (thanks to the combination of Samsung and Osram diodes) are able to increase resin, terpene and cannabinoid production. Definitely, one of the most complete lighting systems on the market.

Full spectrum of the latest technology and dimmer included

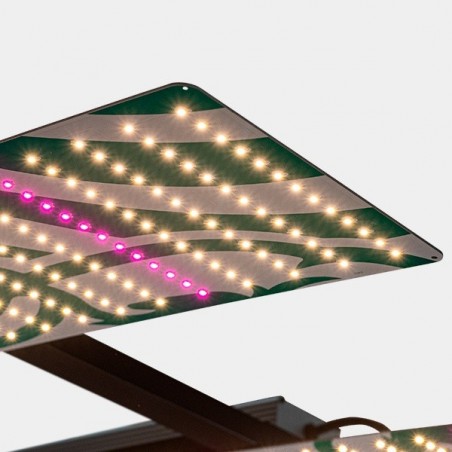

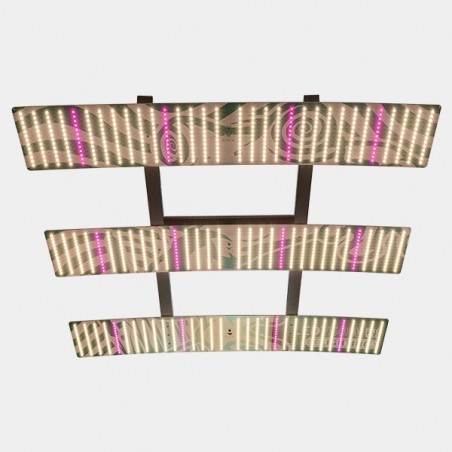

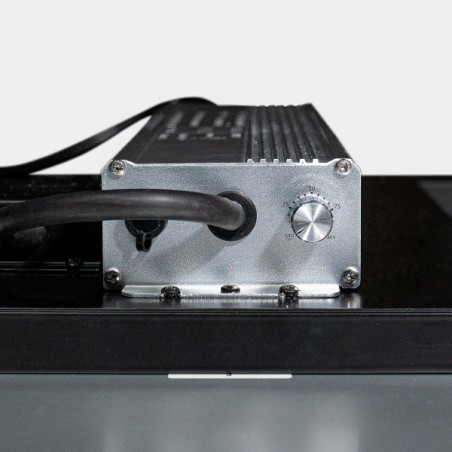

One of the most important characteristics of this lamp is the mix of blue, yellow, red and green tones that reproduce sunlight, which improves biochemical processes in the growth and flowering phases. Moreover, this product has a dimmer that allows the power to be adjusted from 0 to 100 in steps of 10 (10%, 20%, 30%...). This selection will depend on plants’ needs, crop’s characteristics and users’ preferences.

How to install the dimmable LED panel 750 W V3.0 PRO GB Lighting?

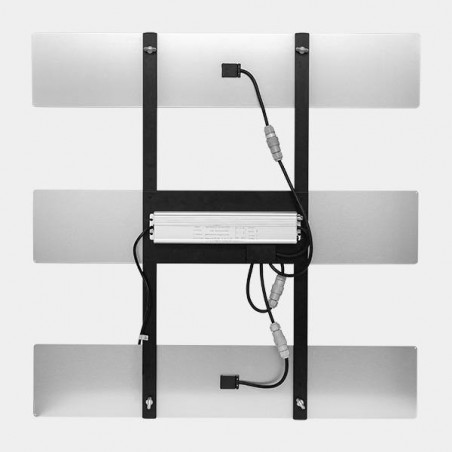

1. Open the box and position the frame so that the aluminium profiles are facing up and the controller is facing down. It is advisable to install it on a smooth and clean surface to avoid damaging the product. Next, the LED panels should be removed and placed on a circuit so that the holes in the two compounds (where the clips will be inserted later) coincide.
2. Once the LED panels are in place, the clips should be inserted into the holes to secure the luminaire (each panel has six holes, three on each frame bar). A "click" should be heard when each clip is pushed in.

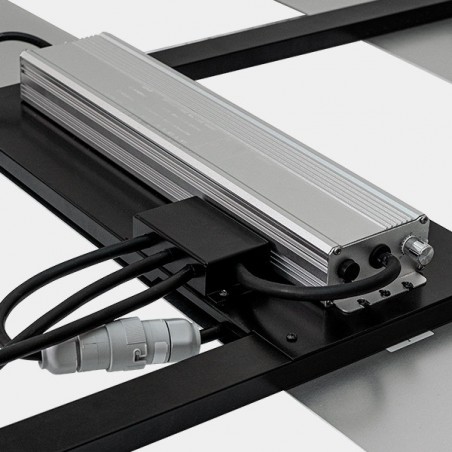

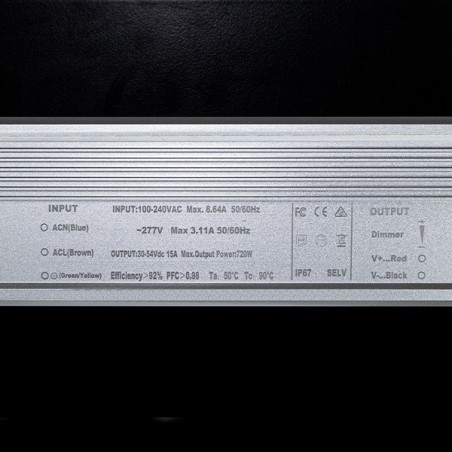

3. To suspend the luminaire, strong pulleys with a minimum weight of 20 kilograms are required. After positioning the LED system where it is to be used, the cable from each panel should be connected to the driver.

Contents and accessories

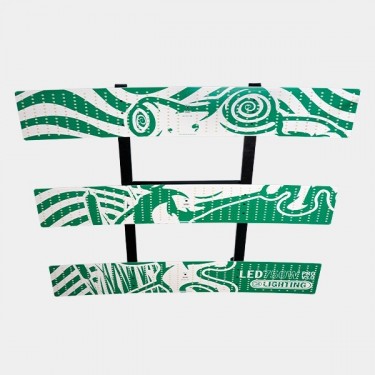

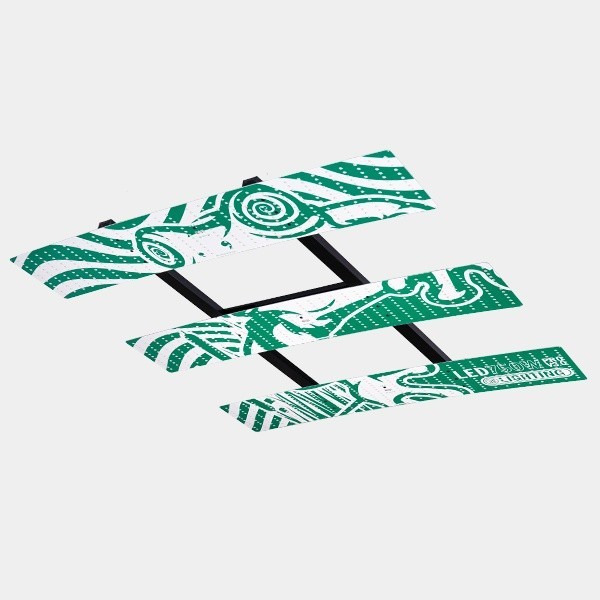

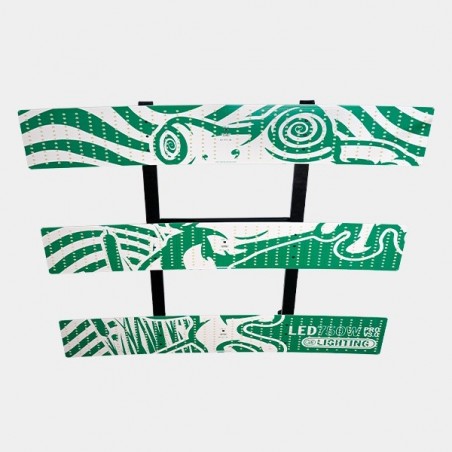

• 1x Frame
• 3x LED system
• 18x Clips

GB Lighting Dimmable LED Panel 750 W V3.0 PRO Characteristics

• Power: 200W
• PPF: 1554 μmol/ J
• Efficiency: up to 2.2 μmol / J
• Spectrum: Full spectrum
• Number of panels: 1
• Input voltage: 220-240V
• Mounting height: ≥ 40 cm above the tip of the plants.
• CRI: ≥ 80
• Potency factor: >95%
• Beam angle: 120
• Colour temperature: 3000K
• Current: 0.88 A
• Functioning: 50/60 Hz
