GB Lighting Dimmable 780W RESINX V3.0 LED System

Increase resin production with the 780w LED Panel

The GB Lighting 780w Dimmable LED System is a professional lighting panel that will boost the growth and flowering of your plants, thus achieving harder, more compact and, above all, resinous flowers. Its full spectrum, adjustable in four modes, allows you to take control of the intensity of the lights so that you can adapt them to the needs of the crop in each of its phases. In addition, its 780w will allow you to illuminate cabinets between 1.2 and 1.6 square metres.

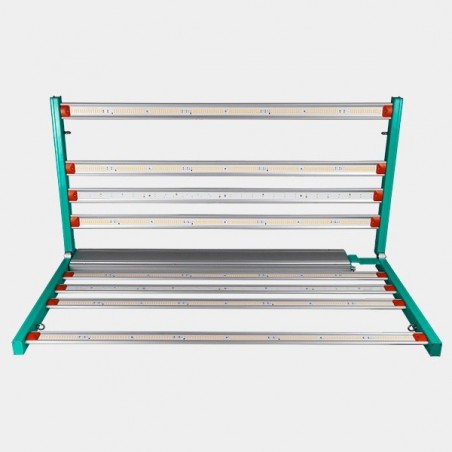

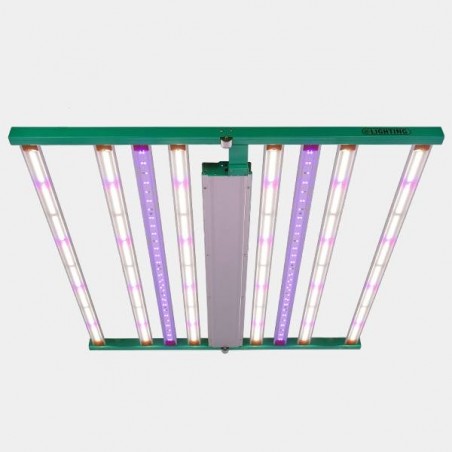

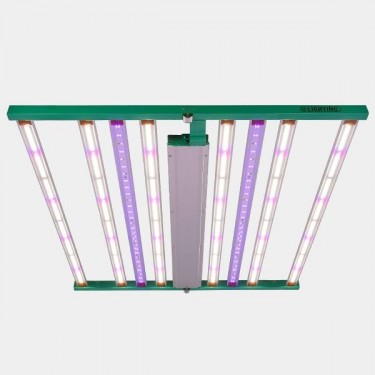

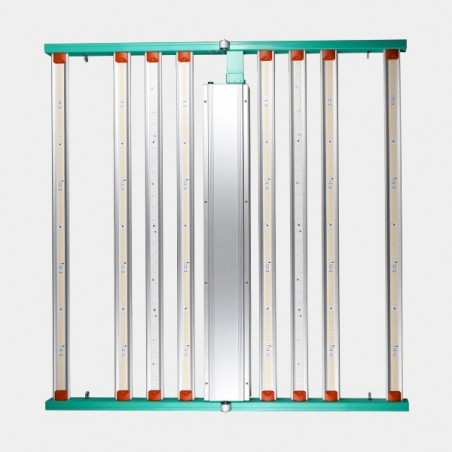

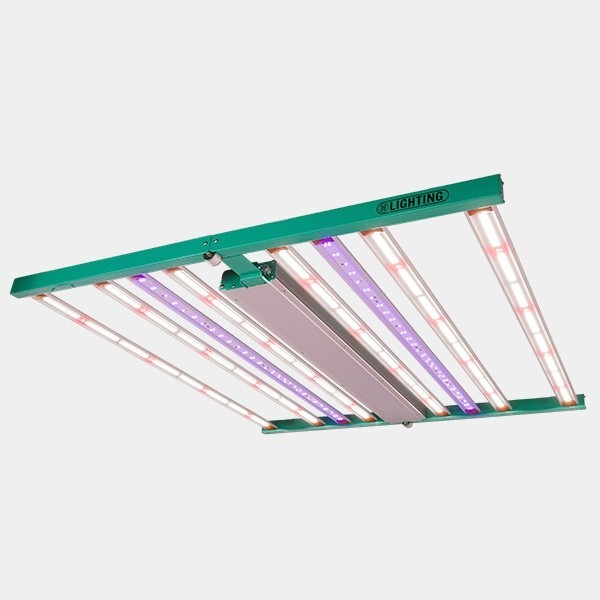

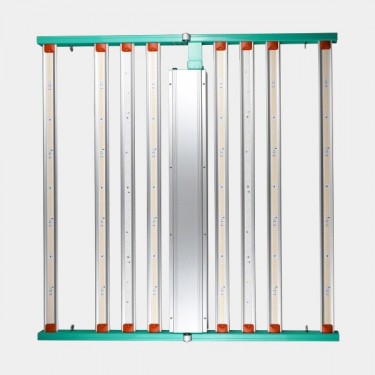

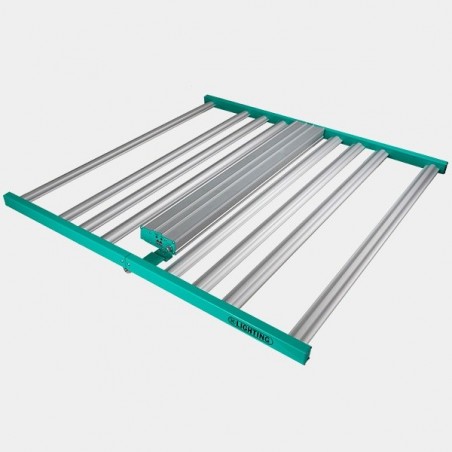

As for its structure, it has six 113w bars and two extra 50w ultraviolet rays. In addition, the panel is foldable in half, which means it can be stored easily and allows you to light the grow tent in 'tile' mode to focus on the centre, very useful in techniques such as SCROG.

On the other hand, from GB The Green Brand we have designed a pack that includes this incredible LED System and some GB grow goggles that will allow you to protect your eyes while you are inside the grow room. Don't miss this opportunity, as the glasses are significantly reduced in price in this offer compared to what they would cost if you bought them separately.

Installation

1. Position the LED horizontally at 180º.
2. Attach the string to the ceiling, beam, grid or anything that will support its weight.
3. Connect the cable to the driver. The installation is now complete.
4. To be able to control the power exactly, insert the RJ12 mains cable to the LED panel and connect the driver (not included).

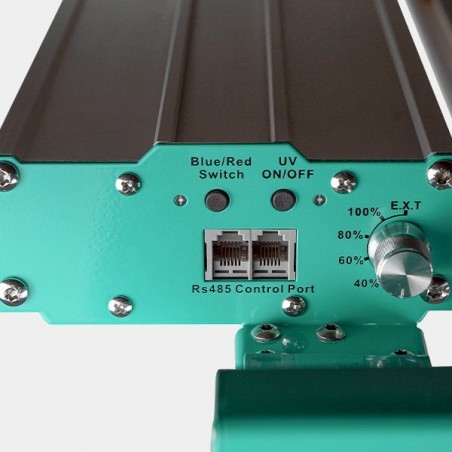

On one side of the system you can find the control panel, which has the following options:

• Socket for light connection.
• Port to connect the controller.
• Manual dimmer to vary the power (Off, 40%, 60%, 80%, 100% and External).
• Button to switch between red and blue light.

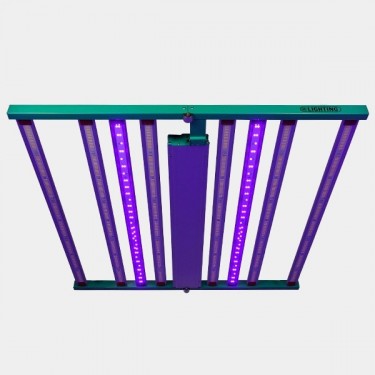

• Button to activate or deactivate the ultraviolet lights.

This LED panel has different spectrums that adapt to the requirements of the plants throughout their life phase:

1. Growth phase: White + Blue to increase chlorophyll production and boost the vigour of the plant's structure.
2. Beginning of flowering phase: White + Red + Far Red to enhance flower growth while reducing chlorophyll production.

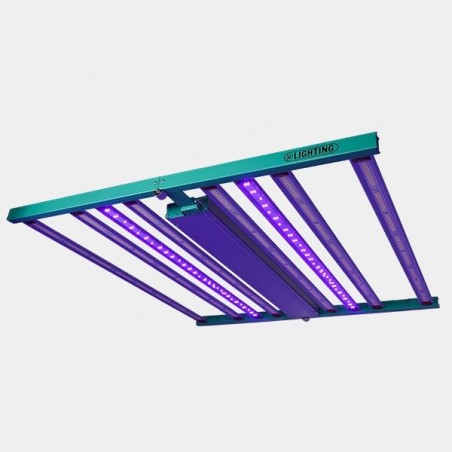

3. End of flowering phase: White + Red + Far Red + UV. Boosts flower production, flower size, flavour and resin content. In addition, ultraviolet lights also help the creation of resin, ideal for lovers of extractions.

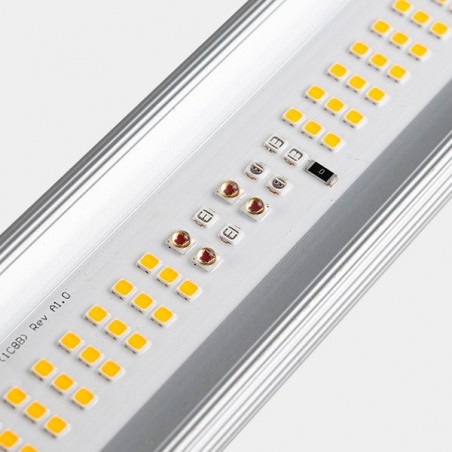

As for the chips, the LED system is composed of 2462 pieces distributed as it follows:

• LED CHIP: 9V 2835 white chips (2160 pieces)
• UVA CHIP: 390nm (96 pieces )
• UVB CHIP: 310nm (14 pieces)
• RED CHIP  660nm (96 pieces)
• BLUE CHIP: 450nm (96 pieces)

The 780w Dimmable LED System includes:

• LED luminaire x1
• External RJ 12 mains cable x1
• Input cable x1
• ⅛ rope pulleys x4

Specifications of Dimmable LED System 780 W

• Power: 680w + 100w UV
• Size: 106,7 x 110,5 x 5,4 cm
• PPF: 1870 umol / J / 2150 umol / J
• Efficacy: 2.6 umol / J / 2.6 umol / J
• Full spectrum + Blue + Red + Red + Far Red + UV
• Number of bars: 8 Bars (6 + 2 UV)
• Input voltage: 120-277 V
• Mounting height: + 15.2 cm above the tip of the plants
• Thermal management: Passive
• Poyency factor: >70%
• Ambient temperature: -25ºC - 40ºC -25ºC - 40ºC

Warnings

• Requires professional installation.
• Do not replace accessories without consulting the manufacturer to avoid fire, electrocution or falls.
• Any maintenance or replacement of parts must be carried out with the device completely switched off and unplugged from the mains.
• Contact the manufacturer in case of doubt.
