Analog V-Timer

Evocrop’s V-Timer is essential to control lighting cycles for indoor grows. This product is very precise once adjusted, which gives growers security as they won’t have to pay so much attention to the lighting system. Thanks to this analog timer, plants will receive the proper lighting hours according to each vital cycle.

Analog V-Timer controls lighting automatically

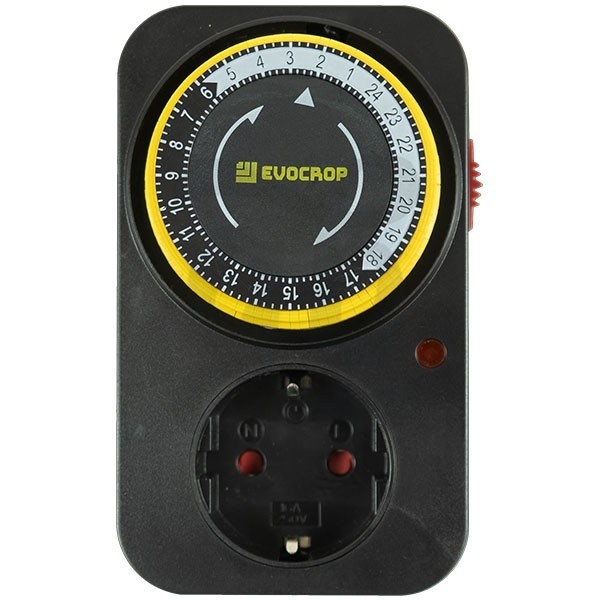

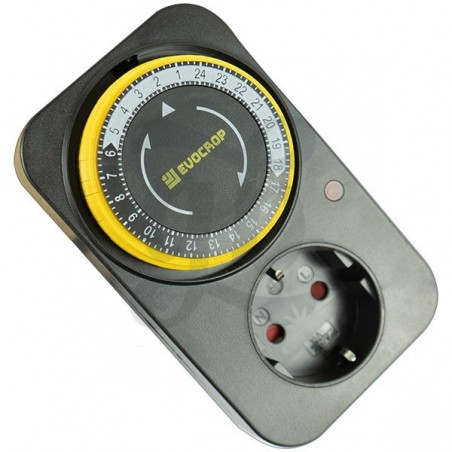

Lighting is highly important for cannabis plants, or any plant really, as it allows photosynthesis to transform certain materials into food. This means that it is vitally important for plants to receive the correct amount of light everyday, which the analog V-Timer does automatically. The pin positions (15 minutes each) adjust the time at which the lighting system should turn on or off. The top arrow is to indicate current time and the red light indicates if the timer is turned on. This timer is also compatible with other appliances, such as extractors, fans, heaters, air conditioners, etc.

How to use the analog V-Timer

• Make sure the V-Timer is unplugged BEFORE HANDLING IT.
• Decide the hours at which the timer has to get turned on or off ( for example 12 pm to 6 pm)and press the pins located in that interval to activate them.
• Each pin represents a 15 minute interval.
• Afterwards, place the arrow at the current time so that it automatically turns on at the selected time.
• Switch the timer "on" and plug it into the electricity.
• A red light will turn on when the V-Timer turns on the appliance.

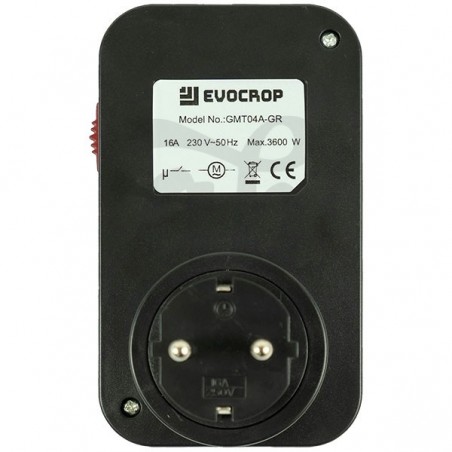

V-Timer characteristics:

• Brand: Evocrop.
• Material: Resistant plastic.
• Timer: it can be programmed for up to 24 h with 15 minute intervals.
• Use modes: Direct current/ timed current/ turned off.
• Security: child proof system.
• Power resistance: 3500 W.
• Resistance amperage: 16A.
• Working voltage: 230v - 50Hz.
