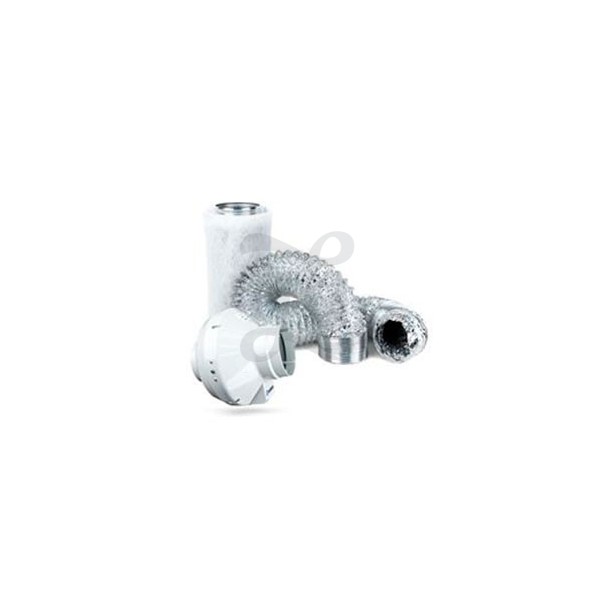

Air Ventilation Kits

Air Ventilation Kits Made with Great Quality Materials for Extracting Air

These full extraction fan kits make it incredibly easy to control the temperature and air flow in your growing area; depending on the extractor you’ll get more or less air flow, and the rest of the kit will be balanced perfectly with your extractor fan’s power.

Calculate the needed extraction speed and obtain the perfect ventilation for the grow area

In order to calculate the extraction speed that you need, you simply need to multiply the square meters of your available space by 60; if you’re growing in a 1.2 x 1.2 x 2 m area, then you should multiply 2.88 x 60, which is 172.8 m³/h. You’ll need to add about 20% on to that if you keep in mind the air resistance provided by the tube and odor filter, so you’d need around 210 m³/h for the previously mentioned area.

This calculation can also vary depending on the temperature of the air outside; if you’re over 20º outdoors you might need a Ceramic Forced Air Heater indoors if you’re using HPS lights.

Depending on the kit you choose, you’ll get different results:

100 mm Ventilation System

• Blauberg 100 mm extraction fan, 250 m³/h
• Flexible Aluconnect aluminum tube (5 m/102 mm)
• Mountain Air 100/250 filter

125 mm Ventilation System

• VK Tubular 125mm Extractor fan, 355 m³/h
• Flexible Aluconnect aluminum tube (5 m/127 mm)
• Mountain Air 125/400 filter

150 mm Ventilation System

• Blauberg 150 mm extraction fan, 460 m³/h
• Flexible Aluconnect aluminum tube (5 m/152 mm)
• Mountain Air 150/500 filter

200 mm Ventilation System

• Blauberg 200 mm extraction fan, 780 m³/h
• Flexible Aluconnect aluminum tube (5 m/202 mm)
• Mountain Air 200/500 filter

250 mm Ventilation System

• Blauberg 250 mm extraction fan, 1080 m³/h
• Flexible Aluconnect aluminum tube (5 m/252 mm)
• Mountain Air 250/500 filter

315 mm Ventilation System

• Blauberg 315 mm extraction fan, 1340 m³/h
• Flexible Aluconnect aluminum tube (5 m/317 mm)
• Mountain Air 315/800 filter
