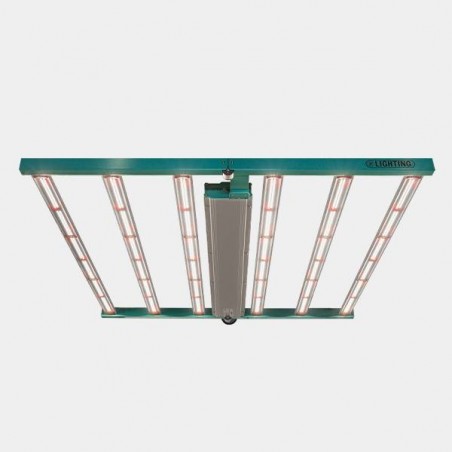

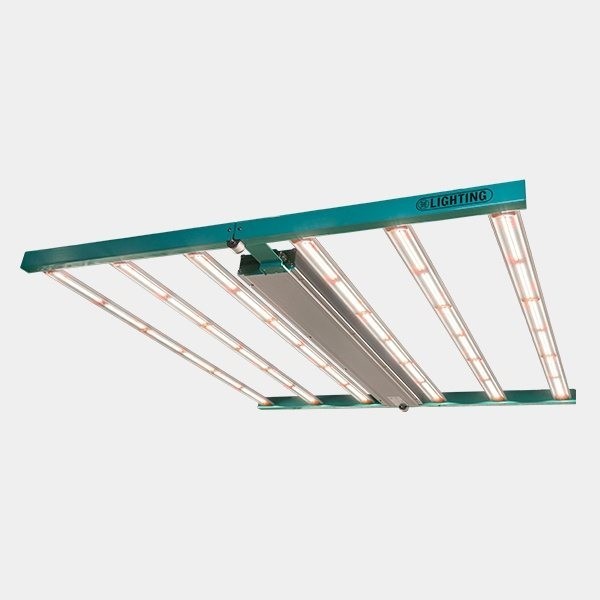

GB Lighting 600W V3.0 Dimmable LED System

The 600W Dimmable V3.0 LED system is a state-of-the-art lighting system that guarantees the best light spectrum for the growing and flowering phases of the crop. All this with a considerable reduction in power consumption and perfect heat management, making this one of the most complete lights on the market.

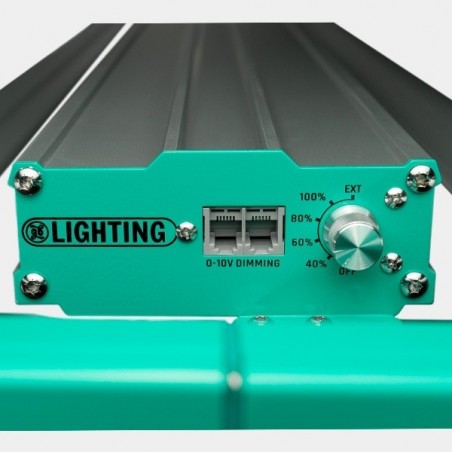

In addition, this panel has a driver that allows the power to be adjusted from 40 to 100 in steps of 20 (OFF, 40%, 60%, 80%, 100% and EXT). This selection will depend on plants’ needs, the characteristics of the crop and the users' preferences.

Excellent light efficiency and PPF over the entire plant life cycle

With this lamp, you can provide the necessary light for your plants in a 1.2 x 1.2 m grow room, boosting the final harvests thanks to its photosynthetic photon flux of 1620 and efficiency of up to 2.7 μmol/ J. All this included in six 100w LED bars, fully replaceable and with a power factor of over 90%.

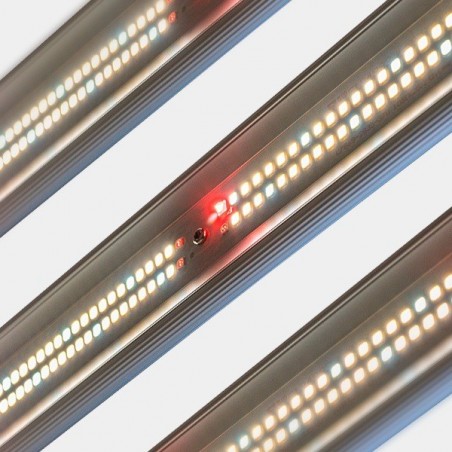

Finally, this system offers an ideal combination of white, blue and red tones. Thanks to its full spectrum, the plants will receive a light similar to sunlight, which favours their development and increases the production of flowers.

Installation

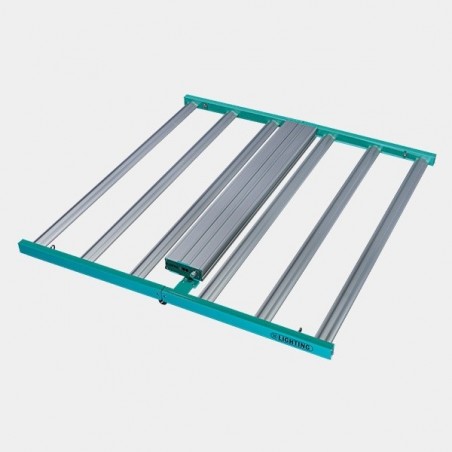

The LED panel is delivered fully assembled. Simply follow the steps below to complete the installation:

1. Remove the panel and place it horizontally.

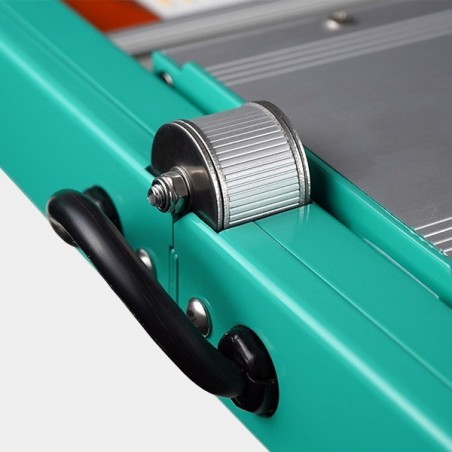

2. Hang the LED system from the ceiling of the room, grow room or structure that can support the weight of the panel. This product includes four metal hangers for easy installation.
3. Connect the power cable to the driver and power supply to turn the luminaire on.
4. An external controller (not included) will be required to accurately regulate the power and can be connected via the RJ12 power cable.

Contents and accessories

• 1x 600w LED Luminaire
• 1x Power cable
• 1x RJ14 cable
• 4x ⅛ Pulleys

600W Dimmable LED System V3.0 GB Lighting Characteristics

• Power: 600W
• PPF: 1620 μmol/ J
• Efficiency: up to 2.7 μmol/ J
• Spectrum: Full spectrum

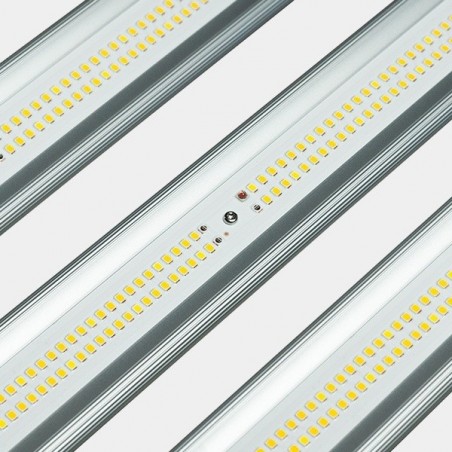

• White lights: 2160 pieces 3V 2835
• Red lights: 54 pieces of 660 mm
• Far red lights: 48 pieces 730 mm

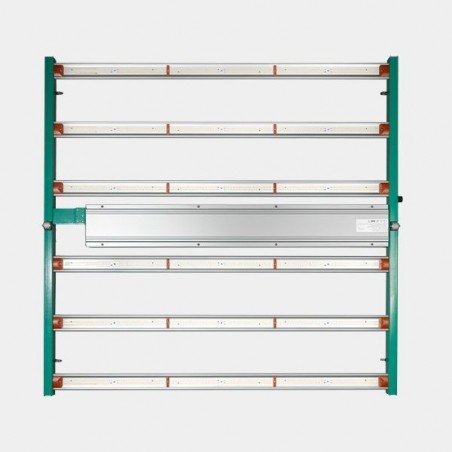

• Number of bars: 6 X 100 w
• Input voltage: 220 - 240 V / 50 - 60 Hz
• Installation height: 50 cm - 1 m above the plant canopy
• Power factor: >90
• Environmental temperature: -25º / +40º.
• Lifespan: 50,000 hours
• Dimensions: 110.5 x 106.7 x 5.4 cm
• Weight: 13 kg
