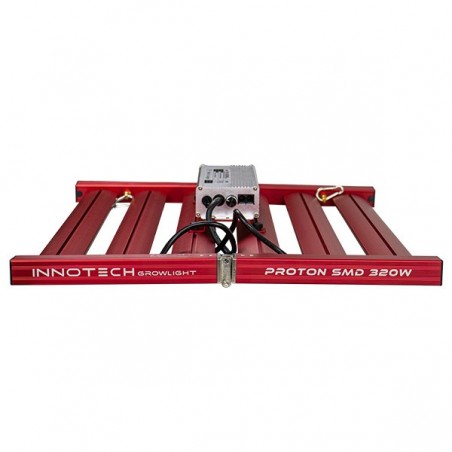

Innotech Proton SMD LED

Innotech Proton SMD LED: Cutting-edge Technology Serving Crops

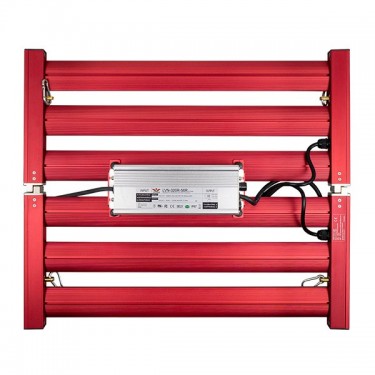

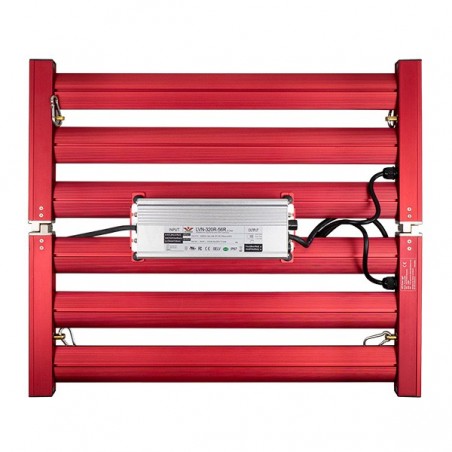

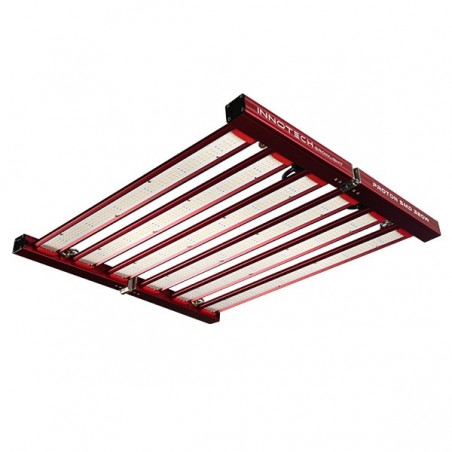

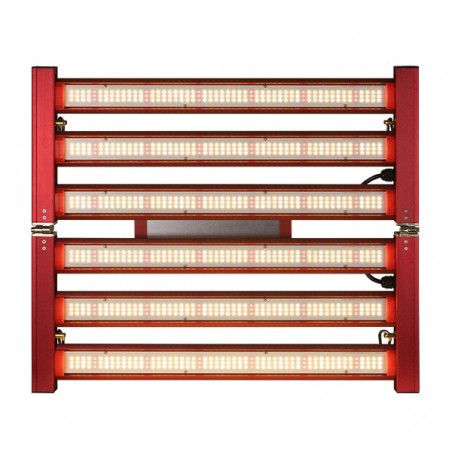

The Proton SMD LED by Innotech is a highly efficient and versatile lighting system specifically designed to grow indoors. This impressive device is available in two powers, 240W and 320W, allowing growers to adapt their illumination to the specific needs of their plants in any context.

One of the main features of the Proton SMD LED by Innotech is its ability to provide both high efficient illumination and PPFD (Photosynthetic Photon Flux Density). Due to this, this system provides a light that plants can absorb in an optimal way, thus promoting vigorous growth and abundant yield.

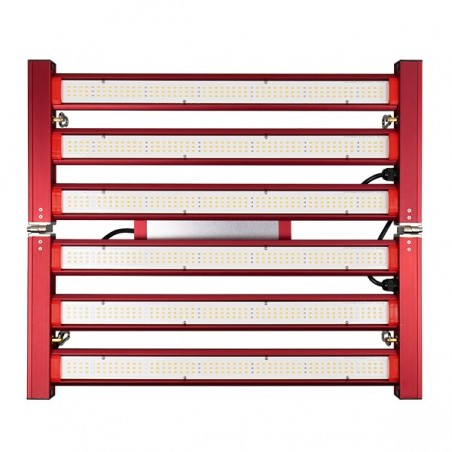

Premium Diodes, Dimmable and Foldable

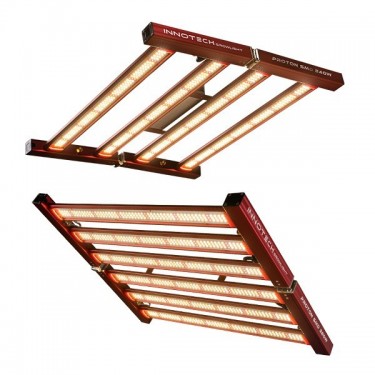

On the other hand, the flexibility of this lighting system is incredible. It is dimmable from 0-100%, allowing growers to adjust the light’s intensity according to the specific needs of your crops. In addition, its foldable design allows you to cover growing areas up to 1x1, becoming an ideal choice for limited spaces.

The Proton SMD LED by Innotech uses high-quality diodes: Samsung 2835, Deep Red 660 nm, Red 660 nm and Orange. This combination of colors is hard to find on the market and guarantees spectacular harvests, as the high concentration of orange-red light is essential for developing flowers of the best quality.

RJ14 Connector & Very Efficient Wave Spectrum

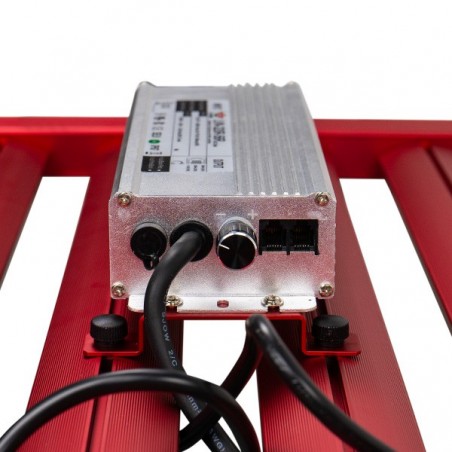

The wave spectrum provided by this lighting system is perfect, resulting in a uniform distribution of light, thus ensuring that all plants receive the light in a homogenous, optimal way. In addition, the possibility of connecting several Protom SMD LED units at the same time through an RJ14 port allows growers to control multiple lighting systems from an external device, easing the management of light in larger growing areas.

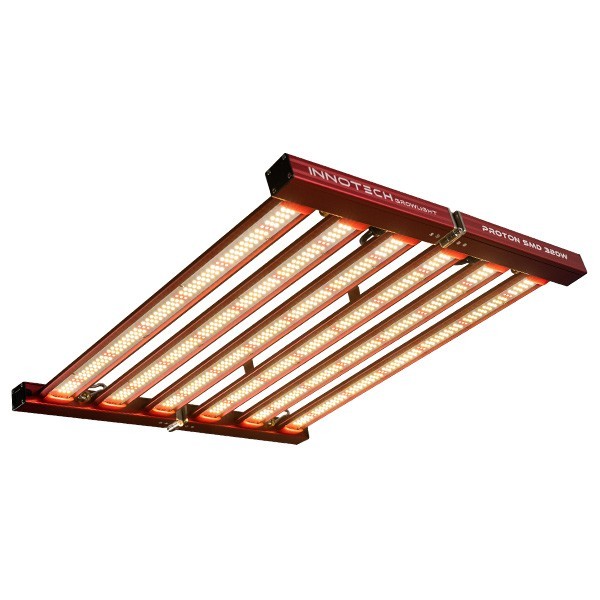

Innotech Proton SMD LED 320W Technical Specifications

• Diodes: Samsung 2835 + Deep Red 660 nm + Red 600 nm + Orange
• PPF Light Output: 832 μmol/s
• Efficiency: 2.6 µmol/J @ 220V AC
• Input Power: 340W approx. @ 220V AC
• Input Voltage: 100-277V AC, 50/60Hz
• Light Distribution: 120º
• BTU/HR Output: 1092 BTU/HR
• Maximum Ambient Temperature: 149°F / 65°C
• Dimmable Setting: 0-100%
• Lifespan:  > 50.000hrs

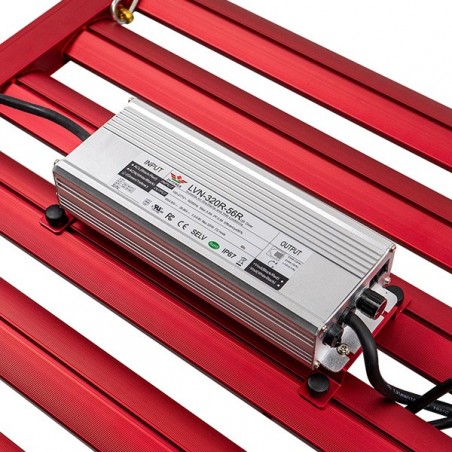

• Power Supply: 1 320W driver

Innotech Proton SMD LED 240W Technical Specifications

• Diodes: Samsung 2835 + Deep Red 660 nm + Red 600 nm + Orange
• PPF Light Output: 624 μmol/s
• Efficiency: 2.6 µmol/J @ 220V AC
• Input Power: 250W approx. @ 220V AC
• Input Voltage: 100-277V AC, 50/60Hz
• Light Distribution: 120º
• BTU/HR Output: 819 BTU/HR
• Maximum Ambient Temperature: 149°F / 65°C
• Dimmable Setting: 0-100%
• Lifespan:  > 50.000hrs
• Power Supply: 1 240W driver

Security notice

• Do not hang anything from the electrical cord.
• Do not connect the system to a different electrical source.
• Do not change the cable or reconfigure the LED system.
• Do not modify or alter this unit.
• Do not wet or submerge in water.
• Do not connect or disconnect the cable from electricity if the device is turned on.
• Do not get the LED panel wet and prevent it from being close to anywhere where it could get wet.
• Do not handle the device while turned on.
• Do not open or handle the inside of the panel.
• Keep out of reach of children.
