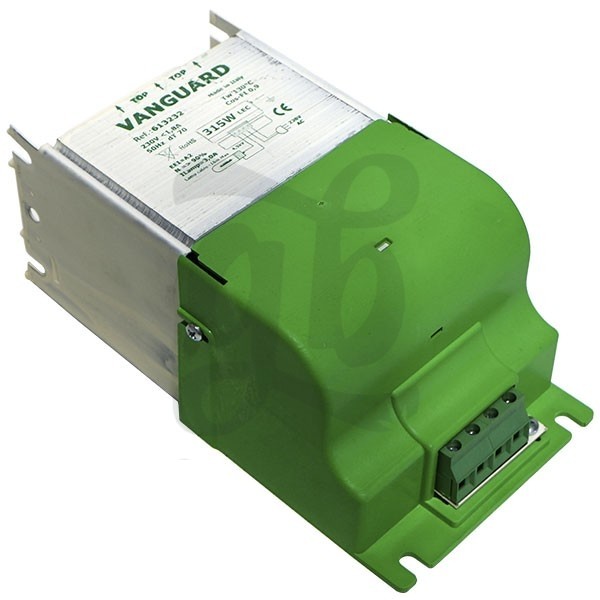

Vanguard 315w LEC Ballast

Compact, Resistant, and Easy to Build Ballast

The Vanguard 315w LEC ballast is a magnetic ballast that’s designed to work specifically and exclusively with 315w LEC lights. This compact ballast is super sturdy and easy to install; it also hardly generates any heat when compared to classic ballasts, such as ETI 2 600w Ballast + 660w Boost, for HPS or MH lights.

Very secure, durable and low consumption Ballast, compared to older ones

The maximum yield that you can get when using these lights and this 315w ballast is around 1.2g per watt used. When compared to electronic LEC ballasts, it produces less grams per wat, but it’s still much better than old magnetic ballasts. It’s also much safer and consumes a lot less electricity, while also generating less heat. You’ll be able to spend way less money and still harvest more weed than usual.

When installing your Vanguard 315W LEC Ballast you’ll need to make absolute sure that the only kind of bulb that you’re using is a 315w LEC bulb. You can use any kind of reflector as long as you have an adapter for those that don’t carry the same socket. Keep in mind that due to how this particular ballast starts up, your bulbs will last for around ¾ of their usual service life.

How to connect your LEC Vanguard 315w Ballast?

To properly connect this ballast, you should connect the cables that go to the socket, to the power strip on the right and the cabling that goes to the lamp, to the left power strip. The F or Phase cable is found on the last power strip to the left and on the last one to the right. The N or Neuter can be found on the two power strips in the middle. The earthing cable should be connected to the nail found on one of the lateral sides, which can be distinguished by the earthing cable symbol.

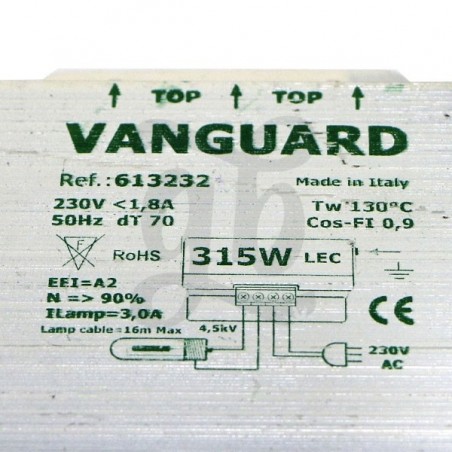

Specific details:

• Wattage: 315w
• Tension: 200v-240v
• Frequency: 50Hz
• Intensity: 1.8A
• Power Factor: 0.9
• Weight: 4 kg
• Max tension: 4.5 kv
• Thermal protection: yes
